Domestic and foreign bulletproof steel plates FD16, FD53, FD54, FD56, FD79, FD95 types, characteristics and applications
1. Introduction to bulletproof steel plates
Bulletproof steel plates are generally used in bulletproof protection and explosion-proof projects, such as shooting range equipment, bulletproof doors, bulletproof helmets, bulletproof vests, bulletproof shields; bank counters, confidential safes; riot vehicles, bulletproof cash transporters, armored personnel carriers, tanks, submarines, landing craft, anti-smuggling boats, helicopters, etc.
2. Types of bulletproof steel plates
Bulletproof steel plates: 26SiMnMo (Gy5), 28CrMo (Gy4), 22SiMn2TiB (616)
Aviation bulletproof steel plates: 32CrNi2MoTiA (A-8), 32Mn2Si2MoA (F-3)
Artillery bulletproof steel plates: 32Mn2SiA (F-2), 22SiMn2TiB (616)
Tank armor plate bulletproof steel plates: 32Mn2SiA deck bulletproof steel plates are used for tank armor plate bulletproof steel plates, tank armor bulletproof steel plates, and ultra-high strength steel welding heat affected zone anti-CI~-corrosion performance.
Bulletproof steel plate: FD16, FD53, FD54, FD56, FD79, FD95, B900FD Baosteel high-strength bulletproof steel
Domestic: NP550 bulletproof steel
Armored steel 617 steel grade belongs to the armored bulletproof steel series, material: 30CrNi2MnMoRE
Armored bulletproof steel 675 steel grade, material: 30CrNi3MoV; implement GJB/31A-2000 standard. This standard includes armored bulletproof steel grades: 603 (30CrMnMoRE), 617 (30CrNi2MnMoRE), 675 (30CrNi3MoV) and other armored bulletproof steels.
3. Swedish imported armored bulletproof steel: PRO500
Four characteristics of PRO500 armored steel plate:
1. Carefully designed alloy composition: low alloy micro-alloying maximizes performance and has the best process performance.
2. Refined raw materials: repeated refining inside and outside the furnace; harmful gases and impurities are fried to the lowest; can be welded and cold-bent.
3. Accurate hot-rolled plate type: minimum thickness tolerance; highest bidirectional flatness.
4. Automatic spray quenching: fine microstructure and uniform hardness distribution.

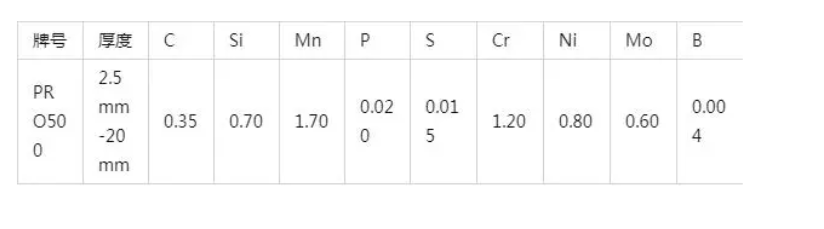

IV. Chemical composition of PRO500 armored steel plate:

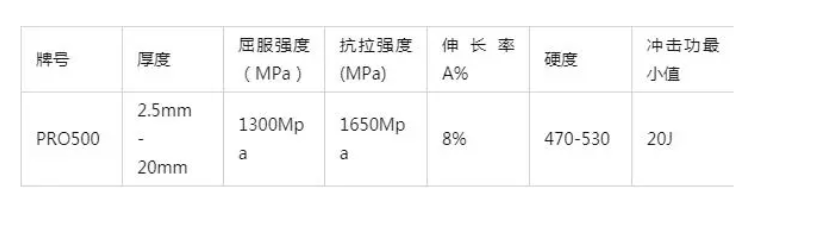

V. Typical mechanical properties of PRO500 armored steel plate:
VI. Application standards and supply specifications of PRO500 armored steel plate:
1. Thickness: 2.5mm-20mm, width: 1000mm-1500mm, length: 2000mm-6000mm.
2. Application standard of PRO500 bulletproof steel plate: GJ-07-IIA
Target thickness mm: 2.5, applicable: Type 54 pistol. Bullet speed m/s: 440. Applicable standard: CN (Grade A).
Target thickness mm: 2.5, applicable to: Type 79 submachine gun, steel core bullet. Bullet speed m/s: 500. Applicable standards: CN (B grade), EN (B3, B4), USA: IIA, IIIA.
Target thickness mm: 4.2, applicable to: Type 56 submachine gun, AK47 (7.62×39). Bullet speed m/s: 720. Applicable standards: CN (C grade).
Target thickness mm: 6.5, applicable to: M165.56×45, (SS109). Bullet speed m/s: 960. Applicable standards: EN (B6), USA (III).
Target thickness mm: 6.5, applicable to: NATO7.62×51, SC. Bullet speed m/s: 820. Applicable standards: EN: B6, USA (III).
Target thickness mm: 12.5, applicable: 56-type armor-piercing bullet 7.62x39API. Bullet speed m/s: 720. Applicable standard: STANAG4569II.
Target thickness mm: 14.5, applicable: NATO7.62x51APHC. Bullet speed m/s: 820. Applicable standard: EN1063B7.
VII. Application of PRO500 armored bulletproof steel plate:
PRO500 steel plate is mainly used to manufacture bulletproof doors, bulletproof helmets, bulletproof vests, bulletproof shields, bank counters, confidential safes, riot vehicles, bulletproof cash transporters, armored personnel carriers, combat vehicles, submarines, landing craft, anti-smuggling boats, helicopters, etc.
VIII. Manufacturing process of PRO500 armored bulletproof steel plate:
1. Welding performance: The carbon equivalent of PRO500 steel is between 0.50-0.62, indicating that this type of steel has good welding performance. The heat input during welding is about 1.5-2.5KJ/mm. High-quality welded workpieces can also be obtained by using domestic welding materials.
2. Cold bending: Follow the following points to avoid cracks during cold bending. Please call our company for consultation.
3. Relationship between inner bending radius and steel plate thickness: steel plate thickness mm: <6, bending angle <90°, pressure head radius R/steel plate thickness t, R/t: 4.0, support point spacing w/steel plate thickness t, W/t: 10.0; steel plate thickness mm: ≥6<20. Bending angle <90°, pressure head radius R/steel plate thickness t, R/t: 8.0, support point spacing w/steel plate thickness t, W/t: 12.0.
IX. Armored bulletproof steel 675
Steel grade material 30CrNi3MoV, implement GJB/31A-2000 standard, 675 armored bulletproof steel plate This standard specifies the composition, performance, use and thickness range of material 30CrNi3MoV: 45mm~80mm.
675 armored bulletproof steel smelting method: Steel should be refined by electric arc furnace plus VHD or equivalent vacuum refining outside the furnace. After consultation between the supply and demand parties and noted in the contract, other methods that can ensure the requirements of this specification can also be used for smelting.
675 armored bulletproof steel characteristics and scope of application: 675 armored bulletproof steel is developed by V microalloying on the basis of the original Cr-Ni-Mo series low-alloy ultra-high strength steel and appropriately adjusting the content of other alloying elements. 30CrNi3MoV high-strength steel is a difficult-to-process material specially used for a certain weapon model. The milling performance of 30CrNi3MoV steel is poor. 30CrNi3MoV high-strength steel is a new type of high-strength steel newly developed and put into use in my country. It is mainly used as a structural material for key parts of a certain major weapon model.
675 armor bulletproof steel mechanical properties: hardness HRC40~42, tensile strength is 1280MPa.
675 armor bulletproof steel chemical composition: carbon C: 0.26~0.32, silicon Si: 0.15~0.35, manganese Mn: 0.30~0.50, phosphorus P: ≤0.015, sulfur S: ≤0.010, chromium Cr: 0.60~1.00, nickel Ni: 2.80~3.20, molybdenum Mo: 0.40~0.50, vanadium V: 0.06~0.013.
Delivery status of 675 armored bulletproof steel: The steel plate is delivered in a high-temperature tempered state.
10. Armored bulletproof steel 685
Steel grade 30MnCrNiMo, the material is a medium-carbon high-strength low-alloy steel. 685 armored bulletproof steel implements GJB1998-84 standard; this standard specifies the material composition, performance, use, smelting process and thickness range of 4mm-30mm (exceeding is non-standard).
685 armored bulletproof steel chemical composition: carbon C: 0.26~0.31; silicon Si: 0.20~0.40; manganese Mn: 0.75~1.10; sulfur S: allowable residual content ≤0.010; phosphorus P: allowable residual content ≤0.015; chromium Cr: 0.75~1.10; nickel Ni: 1.05~1.30; molybdenum Mo: 0.25~0.45; copper Cu: ≤0.25.
Delivery status of 685 armored bulletproof steel: Single-rolled steel plates are delivered in high-temperature tempered state, and steel strips are delivered in hot-rolled state. The delivery status should be indicated in the contract.
The main grades of bulletproof steel are: FD16, FD53, FD54, FD56, FD79, FD95, 26SiMnMo(Gy5), 28CrMo(Gy4), 22SiMn2TiB(616), 32CrNi2MoTiA(A-8), 32Mn2Si2MoA(F-3), PRO500, 675 (30CrNi3MoV), 685 (30MnCrNiMo)
