S355J0W steel plate Performance introduction and Use

1. Brief introduction of S355J0W steel plate:

S355J0W is European standard atmospheric corrosion-resistant steel, which belongs to weather-resistant steel plate. It is a low-alloy steel made by adding a certain amount of alloy elements to ordinary steel. The atmospheric corrosion resistance of weathering steel is 2-8 times that of ordinary carbon steel, and it has good mechanical properties, welding properties, etc., and the longer the time, the more obvious the corrosion resistance effect.

product

2. S355J0W improved atmospheric corrosion resistant steel

A certain amount of alloying elements are added to the steel, such as P, Cu, Cr, Ni, Mo, in order to increase the resistance to air corrosion, and under the influence of climatic conditions, an automatic protective oxide will be regenerated on the base metal.

3. Delivery status of S355J0W:

Delivered in hot rolled, normalized or normalized rolled condition.

Four, S355J0W steel plate executive standard:

S355J0W implements EN10025-5:2004 standard.

5. S355J0W improved atmospheric corrosion resistant steel

A certain amount of alloying elements are added to the steel, such as P, Cu, Cr, Ni, Mo, in order to increase the resistance to air corrosion, and under the influence of climatic conditions, an automatic protective oxide will be regenerated on the base metal.

6. Our supply capacity:

1. Available steel plate specification range: thickness 8-700mm, width 1500-4020mm, length 4000mm-17000mm, unit weight up to 30.00 tons. Larger gauge steel plates are also available upon request.

2. Types of steel plates available: carbon structural steel plates, low-alloy high-strength steel plates, steel plates for bridges, steel plates for building structures, steel plates for shipbuilding and offshore platforms, steel plates for boilers and pressure vessels, steel plates for molds, steel plates for alloy structures, There are 12 categories of steel plates for oil and gas pipelines, high-strength and high-toughness steel plates, corrosion-resistant steel plates, and composite steel plates, with more than 300 domestic and foreign brands.

3. Available for flaw detection requirements, Z15-Z35 thickness direction performance requirements, high strength and high toughness requirements and other steel plates.

4. It can be supplied according to national standards, metallurgical standards, American standards AISI/ASME/ASTM, Japanese JIS, German standard DIN, French NF, British BS, European EN, international ISO and other standards.

Seven, S355J0W steel plate chemical composition (smelting analysis) and S355J0W mechanical properties and mechanical properties:

C Si Mn P S Ni

0.16 0.5 0.5-1.5 0.03 0.025 0.65

CrMoCuNZrCeqMax

0.4-0.8 0.3 0.25-0.55 0.010 0.15 0.52

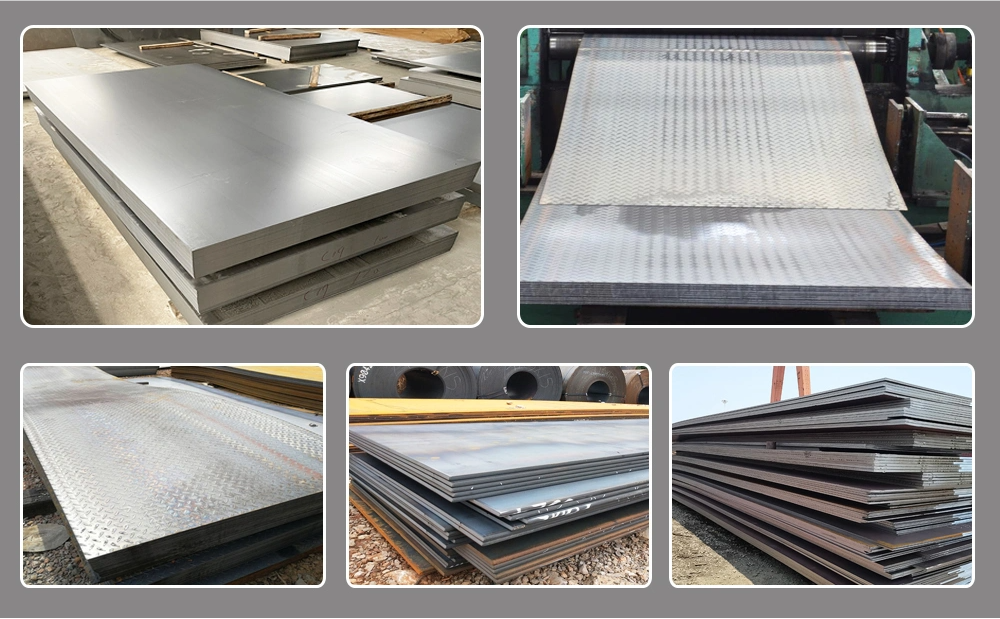

 2c743588036c8a94c7de57a776d884d

Note 2: Mechanical property requirements apply to transverse

Grade Specification Yield strength (Map) Tensile strength (Map) Elongation A (%)

S355J0W 16 355 510-680 22

16-40 345 470-630

41-63 335 470-630

63-80 325 470-630 18

80-100 315 470-630

100-150 295 450-600
