Stainless steel wire

Stainless steel wire

Stainless steel is a high alloy steel that can resist corrosion in air or chemical corrosive media. Stainless steel has a beautiful surface and good corrosion resistance. It does not need to be treated by surface treatment such as plating, but exerts the inherent surface properties of stainless steel. It is a kind of steel used in many aspects and is usually called stainless steel. Representative performance includes 13 chromium steel, 18-8 chromium-nickel steel and other high alloy steels.

From the perspective of metallography, because stainless steel contains chromium, a very thin chromium film is formed on the surface. This film isolates the oxygen that invades the steel and plays a corrosion-resistant role.
In order to maintain the inherent corrosion resistance of stainless steel, steel must contain more than 12% chromium.
304 is a general-purpose stainless steel that is widely used to make equipment and parts that require good comprehensive performance (corrosion resistance and formability).304 stainless steel is a grade of stainless steel produced according to the American ASTM standard. 304 is equivalent to my country’s 0Cr19Ni9 (0Cr18Ni9) stainless steel. 304 contains 19% chromium and 9% nickel.
304 is the most widely used stainless steel and heat-resistant steel. Used in food production equipment, chemical equipment, nuclear energy, etc.
304 stainless steel chemical composition Specifications C Si Mn P S Cr Ni (nickel) Mo SUS431 ≤0.08 ≤1.00 ≤2.00 ≤0.05 ≤0.03 18.00-20.00 8.25~10.50 -
Material: 304, 304L, 316, 316L, 321, 310S, etc. Stainless steel wire rope: diameter 0.15mm, matte rope, hard rope; soft rope; PC; PE; PVC coated rope, etc.

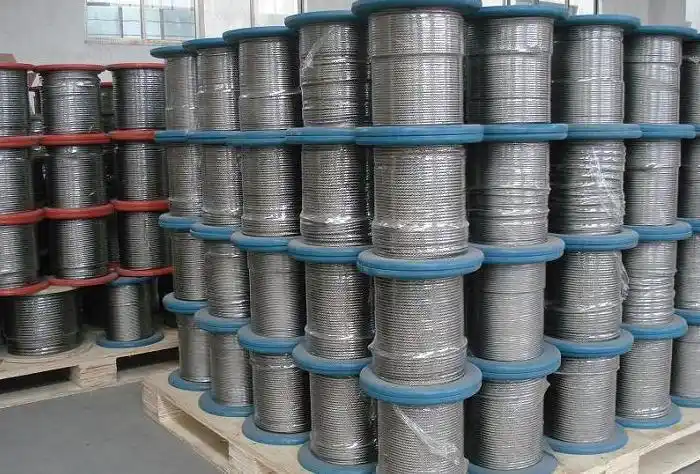

Stainless steel wire rope
Specifications: Ф0.15mm-Ф50mm 6×19, 7×19, 1×7, 1×19, 6×7, 7×7, 6×37, 7×37, etc.
Material: SUS202, 301, 302, 302HQ, 303, 303F, 304, 304HC, 304L, 316, 316L, 310, 310S, 321, 631, etc., stainless steel anti-theft net wire rope, lifting wire rope, stainless steel cable, stainless steel fishing rope, brake rope, rubber-coated rope, hanging rope, rubber-coated rope, hard rope, soft rope, nylon (or PVC) plastic-coated wire rope, etc. (and accept customized stainless steel ropes of special specifications).
Chemical composition%
C: ≤0.07 Si: ≤1.0 Mn: ≤2.0 Cr: 17.0～19.0 Ni: 8.0～11.0
Mo: Cu: Ti: S: ≤0.03 P: ≤0.035
Physical properties
Yield strength (N/mm2) ≥205
Tensile strength ≥520
Elongation (%) ≥40
Hardness HB ≤187 HRB≤90 HV ≤200
Density 7.93 g·cm-3
Specific heat c(20℃) 0.502 J·(g·C)-1
Thermal conductivity λ/W(m·℃)-1 (at the following temperatures/℃)
20 100 500
12.1 16.3 21.4
Linear expansion coefficient α/(10-6/℃) (at the following temperatures/℃)
20～100 20～200 20～300 20～400
16.0 16.8 17.5 18.1
Resistivity 0.73 Ω·mm2·m-1
Melting point 1398～1420℃
